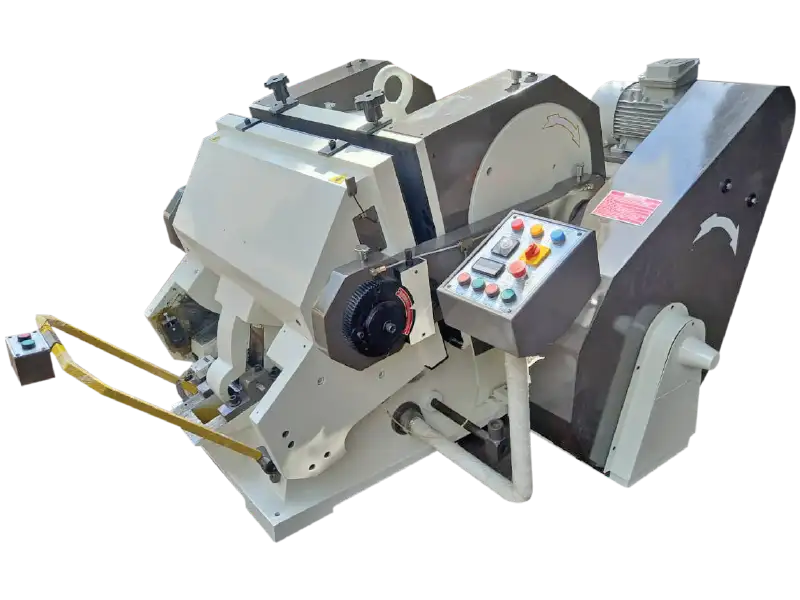

Die Punching Machines
Heavy-Duty Platen Punching, Creasing & Embossing
Heavy-duty platen punching, creasing and embossing machines designed for cutting, creasing and embossing of paper, linoleum, cardboard, corrugated board, plastic and PVC materials.
Manufactured in Amritsar, India
Worldwide Shipping
On-site Installation & Training
12 Month Warranty
About Die Punching Machines
This heavy duty platen punching, creasing and embossing machine is particularly designed for heavy jobs of cutting, creasing and embossing of paper, linoleum, cardboard, corrugated board, plastic and PVC material etc. The main Gears Shaft and Connecting Arms are mounted on Phosphorus Bronze Bushes.
Ball/Roller Bearing Mounted Crank Shaft drives the Platen through a Pair of high-speed Double Helical Gears (for increased strength) and two Pairs of reduction Spiral Gears being lubricated by Grease/Oil.
Our constant strives for better machines & enormous experience gained over the years in the field of quality Die Cutting & Creasing Platens. We use quality materials suitable for every part of the machine, such as – Shafts, Cam and Roller, Sliding/Guiding Plates for the Moving Platen, Connecting Arms are mounted on Phosphorus Bronze Bushes. The Reduction Gear is made of Hardened Quality Alloy Steel/Cast Nylon.
Key Specifications
- Heavy-duty platen punching, creasing & embossing
- Available in 8 sizes from 22"x32" to 51"x81"
- Main Gears and Connecting Arms on Phosphorus Bronze Bushes
- Ball/Roller Bearing Mounted Crank Shaft
Key Features:
- Double Helical Gears for increased strength
- Reduction Spiral Gears lubricated by Grease/Oil
- Hardened Quality Alloy Steel/Cast Nylon Reduction Gear
- Ideal for paper, cardboard, plastic & PVC
Accessories Included:
- One Screw Driver
- One Oil Can
- Two Wrenches
Technical Specifications
Complete technical specifications for all available models of the Die Punching Machine.
| Size | Platen | Impressions | Power (H.P) | Floor Space | Wt. Approx. (Tons) |
|---|---|---|---|---|---|
| 22"x32" | 25"x35" | 1800 | 2.0 | 62"x53" | 3.4 |
| 25"x37" | 28"x40" | 1800 | 5.0 | 65"x55" | 4.0 |
| 29"x40" | 32"x43" | 1500 | 5.0 | 68"x60" | 4.5 |
| 32"x42" | 36"x46" | 1500 | 7.5 | 70"x68" | 5.5 |
| 36"x50" | 40"x54" | 1200 | 7.5 | 77"x75" | 7.5 |
| 42"x62" | 46"x66" | 1000 | 10.0 | 84"x90" | 10.0 |
| 48"x68" | 52"x72" | 900 | 15.0 | 88"x98" | 11.5 |
| 51"x81" | 55"x85" | 700 | 15.0 | 94"x110" | 15.5 |
Key Features & Benefits
Heavy-Duty Construction
Designed for heavy jobs of cutting, creasing and embossing of various materials including paper, cardboard, plastic and PVC.
Phosphorus Bronze Bushes
Main Gears Shaft and Connecting Arms mounted on Phosphorus Bronze Bushes for durability and smooth operation.
Double Helical Gears
High-speed Double Helical Gears for increased strength and smooth power transmission.
Ball/Roller Bearing Mounted
Crank Shaft drives the Platen through Ball/Roller Bearing Mounted mechanism for precision.
